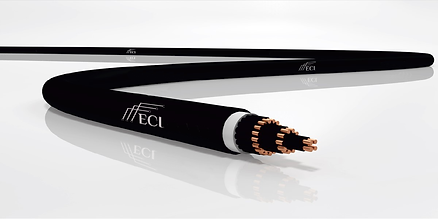

0.6/1 kV PVC Insulated, Control Cables

0,6-1 kV PVC İzoleli, Kumanda Kabloları.png

STRUCTURE:

* Single or stranded twisted copper conductor, * PVC insulation, * PVC filling, * PVC outer sheath

CODE:

YVV, Cu/PVC/PVC (NYY)

STANDARDS:

TS IEC 60502-1, VDE 0276, IEC 60502, BS 6346

TECHNICAL DATA:
Max. operating temperature : 70° C
Max. short circuit temperature : 160° C (t≤5 sec)
Rated voltage : 0.6 / 1 kV
AC Test voltage : 3.5 kV

USED PLACES:

It is used in places where there is no mechanical stress, in energy networks, as a lighting cable indoors and outdoors, underground and in cable ducts.
